Video foreground/background separation

This example illustrates video foreground/background separation via robust PCA using the Julia language. For simplicity, the method here assumes a static camera. For free-motion camera video, see Moore et al., 2019.

This page comes from a single Julia file: foreback.jl.

You can access the source code for such Julia documentation using the 'Edit on GitHub' link in the top right. You can view the corresponding notebook in nbviewer here: foreback.ipynb, or open it in binder here: foreback.ipynb.

Setup

Add the Julia packages used in this demo. Change false to true in the following code block if you are using any of the following packages for the first time.

if false
    import Pkg
    Pkg.add([
        "ColorTypes"
        "ColorVectorSpace"
        "Downloads"
        "InteractiveUtils"
        "LaTeXStrings"
        "LinearAlgebra"
        "LinearMapsAA"
        "MIRT"
        "MIRTjim"
        "Plots"
        "Statistics"
        "VideoIO"
    ])
end

Tell Julia to use the following packages. Run Pkg.add() in the preceding code block first, if needed.

using ColorTypes: RGB, N0f8
using ColorVectorSpace
using Downloads: download
using InteractiveUtils: versioninfo
using LaTeXStrings
using LinearAlgebra: Diagonal, I, norm, svd, svdvals
using LinearMapsAA: LinearMapAA, redim
using MIRT: pogm_restart
using MIRTjim: jim, prompt
using Plots: default, gui, plot, savefig
using Plots: gif, @animate, Plots
using Statistics: mean
using VideoIO
default(); default(markerstrokecolor=:auto, label = "", markersize=6,
legendfontsize = 8) # todo: https://github.com/JuliaPlots/Plots.jl/issues/4621

The following line is helpful when running this file as a script; this way it will prompt user to hit a key after each image is displayed.

isinteractive() && prompt(:prompt);

Load video data

Load raw data

if !@isdefined(y1)
    url = "https://github.com/JeffFessler/book-la-data/raw/main/data/bmc-12/111-240-320-100.mp4"
    tmp = download(url)
    y1 = VideoIO.load(tmp) # 100 frames of size (240,320)
    if !isinteractive() # downsample for github cloud
        y1 = map(y -> y[1:2:end,1:2:end], (@view y1[2:2:end]))
    end
end;

Convert to array

yf = map(y -> 1f0*permutedims(y, (2,1)), y1) # 100 frames of size (320,240)
Y3 = stack(yf) # (nx,ny,nf)
(nx, ny, nf) = size(Y3)
py = jim([yf[1], yf[end], yf[end]-yf[1]];
    nrow = 1, size = (600, 200),
    title="Frame 001  |  Frame $nf  |  Difference")
Example block output

Cost function

Encoding operator A = [I I] for L+S because we stack X = [L;;;S]

tmp = LinearMapAA(I(nx*ny*nf);
    odim=(nx,ny,nf), idim=(nx,ny,nf), T=Float32, prop=(;name="I"))
tmp = kron([1 1], tmp)
A = redim(tmp; odim=(nx,ny,nf), idim=(nx,ny,nf,2)) # "squeeze" odim

unstack(X, i) = selectdim(X, ndims(X), i)
Lpart = X -> unstack(X, 1) # extract "L" from X
Spart = X -> unstack(X, 2) # extract "S" from X
nucnorm(L::AbstractMatrix) = sum(svdvals(L)) # nuclear norm
nucnorm(L::AbstractArray) = nucnorm(reshape(L, :, nf)); # (nx*ny, nf) for L

The robust PCA optimization cost function is:

\[Ψ(\mathbf{L},\mathbf{S}) = \frac{1}{2} \| \mathbf{L} + \mathbf{S} - \mathbf{Y} \|_{\mathrm{F}}^2 + α \| \mathbf{L} \|_* + β \| \mathrm{vec}(\mathbf{S}) \|_1\]

or equivalently

\[Ψ(\mathbf{X}) = \frac{1}{2} \left\| [\mathbf{I} \ \mathbf{I}] \mathbf{X} - \mathbf{Y} \right\|_{\mathrm{F}}^2 + α \| \mathbf{X}_1 \|_* + β \| \mathrm{vec}(\mathbf{X}_2) \|_1\]

where $\mathbf{Y}$ is the original data matrix.

robust_pca_cost(Y, X, α::Real, β::Real) =
    0.5 * norm( A * X - Y )^2 + α * nucnorm(Lpart(X)) + β * norm(Spart(X), 1);

Proximal algorithm helpers:

soft(z,t) = sign(z) * max(abs(z) - t, 0);

Singular value soft thresholding (SVST) function:

function SVST(X, beta)
    shape = size(X)
    X = reshape(X, :, shape[end]) # unfold
    U,s,V = svd(X)
    sthresh = @. soft(s, beta)
    jj = findall(>(0), sthresh)
    out = U[:,jj] * Diagonal(sthresh[jj]) * V[:,jj]'
    return reshape(out, shape)
end;

Algorithm

Proximal gradient methods for minimizing robust PCA cost function.

The proximal optimized gradient method (POGM) with adaptive restart is faster than FISTA with very similar computation per iteration. POGM does not require any algorithm tuning parameter, making it easier to use than ADMM in many practical composite optimization problems.

function robust_pca(Y;
    L = Y,
    S = zeros(size(Y)),
    α = 1,
    β = 1,
    mom = :pogm,
    Fcost::Function = X -> robust_pca_cost(Y, X, α, β),
#  fun = (iter, xk, yk, is_restart) -> (),
    fun = mom === :fgm ?
        (iter, xk, yk, is_restart) -> (yk, Fcost(yk), is_restart) :
        (iter, xk, yk, is_restart) -> (xk, Fcost(xk), is_restart),
    kwargs..., # for pogm_restart
)

    X0 = stack([L, S])
    f_grad = X -> A' * (A * X - Y) # gradient of smooth term
    f_L = 2 # Lipschitz constant of f_grad
    g_prox = (X, c) -> stack([SVST(Lpart(X), c * α), soft.(Spart(X), c * β)])
    Xhat, out = pogm_restart(X0, Fcost, f_grad, f_L; g_prox, fun, mom, kwargs...)
    return Xhat, out
end;

Run algorithm

Apply robust PCA to each RGB color channel separately for simplicity, then reassemble.

channels = [:r :g :b]
if !@isdefined(Xpogm)
    α = 30
    β = 0.1
    niter = 10
    Xc = Array{Any}(undef, 3)
    out = Array{Any}(undef, 3)
    for (i, c) in enumerate(channels) # separate color channels
        @info "channel $c"
        Yc = map(y -> getfield(y, c), Y3);
        Xc[i], out[i] = robust_pca(Yc; α, β, mom = :pogm, niter)
    end
    Xpogm = map(RGB{Float32}, Xc...) # reassemble colors
end;
[ Info: channel r
[ Info: channel g
[ Info: channel b

Results

Extract low-rank (background) and sparse (foreground) components:

Lpogm = Lpart(Xpogm)
Spogm = Spart(Xpogm)
iz = nf * 81 ÷ 100
tmp = stack([Y3[:,:,iz], Lpogm[:,:,iz], Spogm[:,:,iz]])
jim(:line3type, :white)
pf = jim(tmp; nrow=1, size=(700, 250),
# xaxis = false, yaxis = false, # book
 title="Original frame $iz | low-rank background | sparse foreground")
# savefig(pf, "foreback-81.pdf")
Example block output

Cost function plot overall cost for all 3 color channels

tmp = sum(out -> [o[2] for o in out], out)
pc = plot(0:niter, tmp; marker = :circle, label="POGM", widen = true,
  xaxis=("Iteration", (0,niter), 0:2:niter), ylabel="Cost function")
Example block output
prompt()

Alternatives

Explore simpler methods:

  • average of each color channel
  • first SVD component of each color channel
if !@isdefined(Xsvd3)
    Xmean = Vector{Matrix{Float32}}(undef, 3)
    Xsvd3 = Vector{Matrix{Float32}}(undef, 3)
    refold = v -> reshape(v, nx, ny)
    for (i, c) in enumerate(channels) # separate color channels
        @info "channel $c"
        tmp_ = map(y -> getfield(y, c), Y3) # (nx,ny,nf)
        Xsvd3[i] = refold(svd(reshape(tmp_, :, nf)).U[:,1]) # first component
        Xmean[i] = refold(mean(tmp_, dims=3))
    end
    Xmean = map(RGB{Float32}, Xmean...) # reassemble colors
    L1 = Lpogm[:,:,1]
    extrema(norm.(Lpogm .- Xmean))
end
(0.0031556103607409546, 0.08418844585069493)

In this case the temporal average of the video sequence is pretty close to the low-rank component, because this video is so simple. The benefits of robust PCA would be more apparent with more complicated videos, e.g., with illumination changes. Even here one can see undesirable effects of the sparse component in the average when we scale the difference image.

pm = jim(
 jim(Xmean, "Average"),
 jim(L1, L"L_1"),
 jim(9 * abs.(L1 - Xmean), "9 × |L_1 - average|"),
# jim(L1 .== Xmean),
)
Example block output

Examining the first SVD component of each color takes a bit more work. SVD components have unit norm, but RGB values should be in [0,1] range. And the SVD has a sign ambiguity. Even after correcting for those issues, the SVD version has a visibly different color tint.

ps1 = jim(Xsvd3; nrow=1, title="Xsvd before corrections", size=(600,200))
Example block output

Correct for SVD sign ambiguity

Xsvd = map(x -> x / sign(mean(x)), Xsvd3)
ps2 = jim(Xsvd; nrow=1, title="Xsvd after sign correction", size=(600,200))
Example block output

Correct for scaling

svdmax = maximum(maximum, Xsvd)
Xsvd = map(x -> x / svdmax, Xsvd)
Xsvd = map(RGB{Float32}, Xsvd...) # reassemble colors
ps = jim(
 jim(yf[1], "First frame"),
 jim(Lpogm[:,:,1], L"L_1"),
 jim(Xsvd, "Xsvd"),
 layout = (1,3),
 size = (600,200),
)
Example block output

Explore rank-1 approximation of each color channel.

function lr_channel(arr::Array, r::Int=1)
    Xlr = Vector{Array{Float32}}(undef, 3)
    for (i, c) in enumerate(channels) # separate color channels
        @info "lr_channel $c"
        tmp = map(y -> getfield(y, c), arr) # (nx,ny,nf)
        tmp = svd(reshape(tmp, :, nf))
        tmp = tmp.U[:,1:r] * Diagonal(tmp.S[1:r]) * tmp.Vt[1:r,:]
        tmp = reshape(tmp, nx, ny, :)
        Xlr[i] = tmp
    end
    return Xlr
end
if !@isdefined(Xr1)
    Xr1 = lr_channel(Y3)
    Xr1 = map(RGB{Float32}, Xr1...) # reassemble colors
    jim(Xr1)
end;
[ Info: lr_channel r
[ Info: lr_channel g
[ Info: lr_channel b

Examine residual between rank-1 approximation and the original video sequence. The residual has a lot of sparse structure to it, rather than being random noise, suggesting that a robust PCA approach with a low-rank + sparse signal model could be more suitable.

pr = jim(Y3 - Xr1)
Example block output

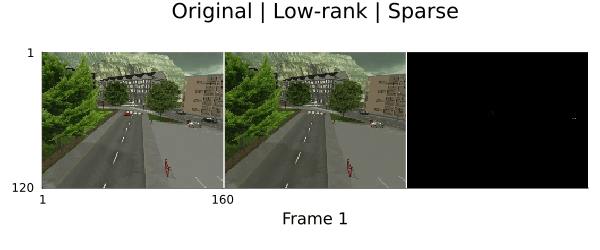

Animate videos

anim1 = @animate for it in 1:nf
    tmp = stack([Y3[:,:,it], Lpogm[:,:,it], Spogm[:,:,it]])
    jim(tmp; nrow=1, title="Original | Low-rank | Sparse",
        xlabel = "Frame $it", size=(600, 250))
#  gui()
end
gif(anim1; fps = 6)
Example block output
